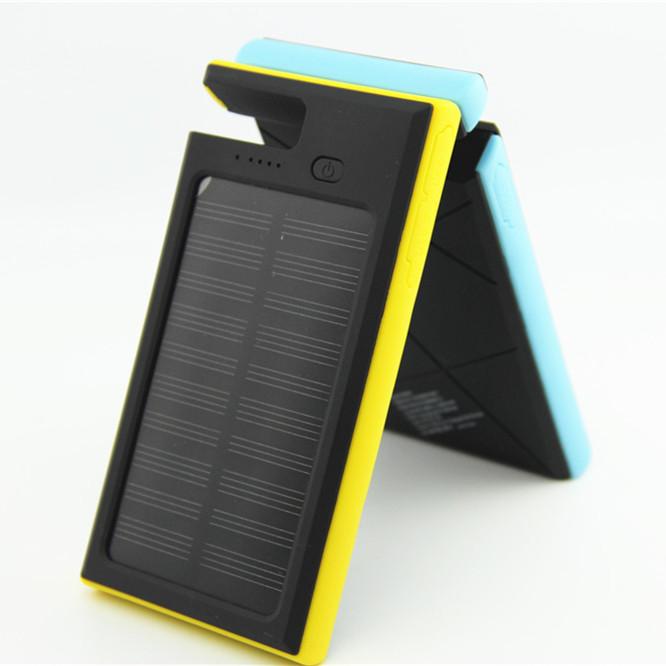

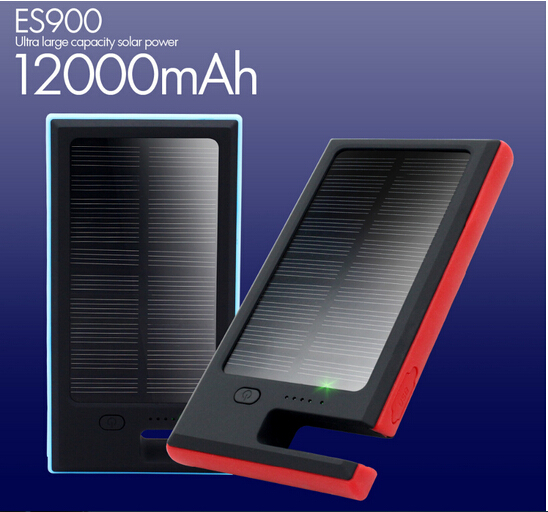

Solar Mobile Power Bank

Model No = ES900

12000mAh External Battery Charger Dual USB

The Solar Charger Power Bank is a battery charger for your digital devices. Portable, small and convenient to carry, charge your mobile phone and digital devices wherever you go. Compatible with mobile phones, cameras, tablets and other digital devices, which have a USB cable connector. Practical high capacity solar charger with built-in 12000mAh lithium polymer battery. Rechargeable using sunlight or A/C power via included micro USB power cord. Ideal for travel or day to day backup power with convenient built-in LED flashlight.

Automatic Sleep mode when not in use
Dual USB outputdesign, you can charge two devices at the same time
Water and Dust resistant
Quality shock prevention and drop resistant casing

Diagram Features

High Quality Plastic and Rubber case, designed to be water, dust, and shock resistant with anti-slip surface to reduce dropping
Phone stand so you can watch videos whilst charging
Solar Panel 5V/200 mAh
Green Solar Charing indicator light
Blue Power Status indicator lights denote remaining charge
Power Button – press once turns on blue indicator lights to show remaining charge. Quick Double press turns on torch, press a third time for strobe light, press forth time for fast strobe, and fifth to turn off light.

Charging your devices

Connect your USB cable for your device to one of the the ‘OUTPUT’ sockets
The Blue LED’s will light up and the device will start charging automatically
Approximate charging time for a smart phone 1.5 to 2 hours depending on battery size and condition

Charging Power Bank using Full Sunlight

Place device with solar panel facing sunlight
The green indicator light will come on to indicate the device is charging
Solar Panel 5V/200 mAh
For regular use you may wish to store in a sun lit area so the power bank can continually restore its charge

Charging Power Bank using A/C

Use USB cable provided, Plug cable into micro usb “INPUT” socket and connect the USB port end into your computer, A USB wall plug style adapter or a USB DC car adapter
When charging the blue LEDs shows a charring pattern
Charging time from full depletion to full stored charge approximately 14.5 hours
Rechargeable Li-ion battery 12000mAh
Input DC 5V-1A
To prolong battery life, store fully charged and recharge every three months

Package contents: 1 Mobile Power Bank 1 USB Charge cable
Product parameters:
Model: ES900
Material: silicone/ flame retardant material
Size: 144*78*18 mm
Weight: 206 g
Li-polymer battery: 12000 mAh
Solar charging: 5V/200 mAh
Input: DC 5V/2A
Output 1: DC 5V/1A
Output 2: DC 5V/2A
Maximum charge current: 1000 mA
Maximum output current: 2000 mA
Battery life: charge/discharge cycle about 500 times
Compatible Brands: All Mobiles, Smart Phones & Tablets that can be charged by USB
Country/Region of Manufacture: China

To calculate for devices not listed, look up the devices battery capacity in mAH and use the below formula:

Power Bank Capacity(mAH) x 80% Efficency x 80%Device Battery health ÷ Device Capacity (mAH)

= Approximate number of full charges

12000mAH x 0.8 x 0.8 ÷ ? = Approximate number of full charges
