Description

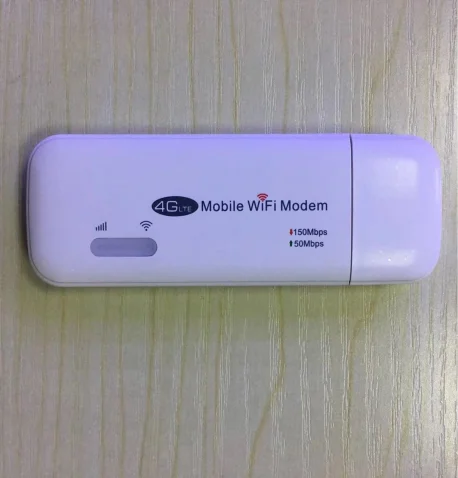

| Modem 4G Wifi 150mbps
1,4G WIFI MODEM |
 |
| 2,Uplink 50Mbps,Downlink:150Mbps | |
| 3,SMS | |
| 4,USSD | |
| 5,Phonebook | |
| WIFI Fuction: | |
| 1,MAX WIFI Speed:150M | |
| 2,Internet connect share 5 user | |
| 3,WIFI Distance max 100M | |
| 4, HAVE MOBILE POWER ,CAN WORK | |
| SPECIFICATIONS | |
| MAIN CHIPSET | QUALCOMM MSM |
| 4G NETWORK | FDD-LTE: B1 2100 B3 1800 B4 1700 B5 850 |
| WCDMA/HSDPA:2100MHz/900MHz; | |
| GSM/GPRS/EDEG:850 MHz/900 MHz/1800 MHz/1900 MHz | |
| 4G REQ | B1 SEND:1920-1980MHz RECEIVE:2110-2170MHz |
| B3 SEND:1710-178MHz RECEIVE:1805-1880MHz | |
| B7 SEND:2500-2570 MHz RECEIVE:2620-2690 MHz | |
| B8 SEND:880-915 MHz RECEIVE:925-960 MHz | |
| B20 SEND:832-862 MHz RECEIVE:791-821 MHz | |
| 4G DATA | WCDMA: DL:384Kbps,UP:384Kbps |
| DC-HSPA+:DL:42 Mbps DP:5.76Mbps | |
| FDD-LTE:DL:100Mbps DP:50Mbps | |
| ANTENNA | Built-in 3G&WIFI antenna |
| WIFI Antenna Gain: -2dbi | |
| “WIFI Antenna Sensitivity: | |
| 54M:-68dBm PER<8% | |
| 11M:-84dBm PER<8% | |
| 6M:-88dBm PER<8% | |
| 1M:-90dBm PER<8%” | |
| 3G Antenna Gain: -2dbi | |
| Power Consumption | Input Voltage: 5V/1A |
| Output Voltage: 5V DC±10% | |
| Max Power consumption: <3W | |
| WiFi Standard | 802.11b/g/n, speed upto 150Mbps |
| WiFi Security | 2412MHz-2472MHz |
| WiFi Security Mode | Open, WPA-PSK, WPA2-PSK |
| Working Temperature | -10 to 55°C |
| Working Humidity | 10%-85% RH |
| Storage Temperature | -20 to 70°C |
| Storage Humidity | 5%-90% RH |
![Wifi 4G Modem IEASUN [10 wi-fi users ] UF725](https://mirpurstore.com/wp-content/uploads/2025/12/4-51-300x300.jpg)
