Description
Mini Body Camera Video Recorder with Night Vision
Model-CB77W
Key attributes
Industry-specific attributes
Special Features
Human Motion Tracking, NIGHT VISION, motion detection, Sound Detection, Two-way Audio
Sensor
CMOS
Style
mini camera
Function
Two-way Audio, Abnormal sound detection, RESET, built-in mic, NIGHT VISION, Waterproof / Weatherproof, Wide Angle
Data Storage Options
Cloud, Full HD, Memory Card, SD Card
Other attributes
Warranty
1 Year
Video Compression Format
H.264
Customized support
Online technical support, Customized logo, Software reengineering, OEM, ODM
Lens
Single-lens
Place of Origin
Guangdong, China
Brand Name
Vstarcam
Model Number
CB77
APP Name
OKCAM PRO
Battery Capacity
1500mah
Resolution
1080P
Warranty
1 YEAR
Network
WIFI/4G
View angle
180 Degree
Image Sensor
CMOS
Color
Balck
Audio
One-way Audio
Video Compression
H.264
Product Paramenters
|
Operating system
|
Linux
|
|||
|
Online visitor
|
Supports 4 visitors at the same time
|
|||
|
APP
|
OKAM
|
|||
|
CPU
|
T31
|
|||
|
Memory
|
8M
|
|||
|
Image sensor
|
GC2083
|
|||
|
Minimum illumination
|
0.5Lux (color mode), 0.1Lux (black & white mode)
|
|||
|
LEN
|
GC2083/1G3P
|
|||
|
Viewing angle
|
Diagonal 129°
|
|||
|
Night vision
|
Dual filter automatic switching, 4*940nm patch infrared lights, irradiation distance: 5
meters |
|||
|
Video Compression standard
|
H.264 /MJPEF/JPEG
|
|||
|
Video Multi stream
|
Main stream:1296P/25fps;Sub stream:360P/25fps
|
|||
|
IR control
|
When the IR night vision function is enabled, IR and ICR are automatically detected;
when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. |
|||
|
Bit rate
|
CBR/VBR two rate control modes, and the output rate range is 128～4096kbps
|
|||
|
Image adjustment
|
Brightness, contrast, vertical, horizontal adjustable, OSD display
|
|||
|

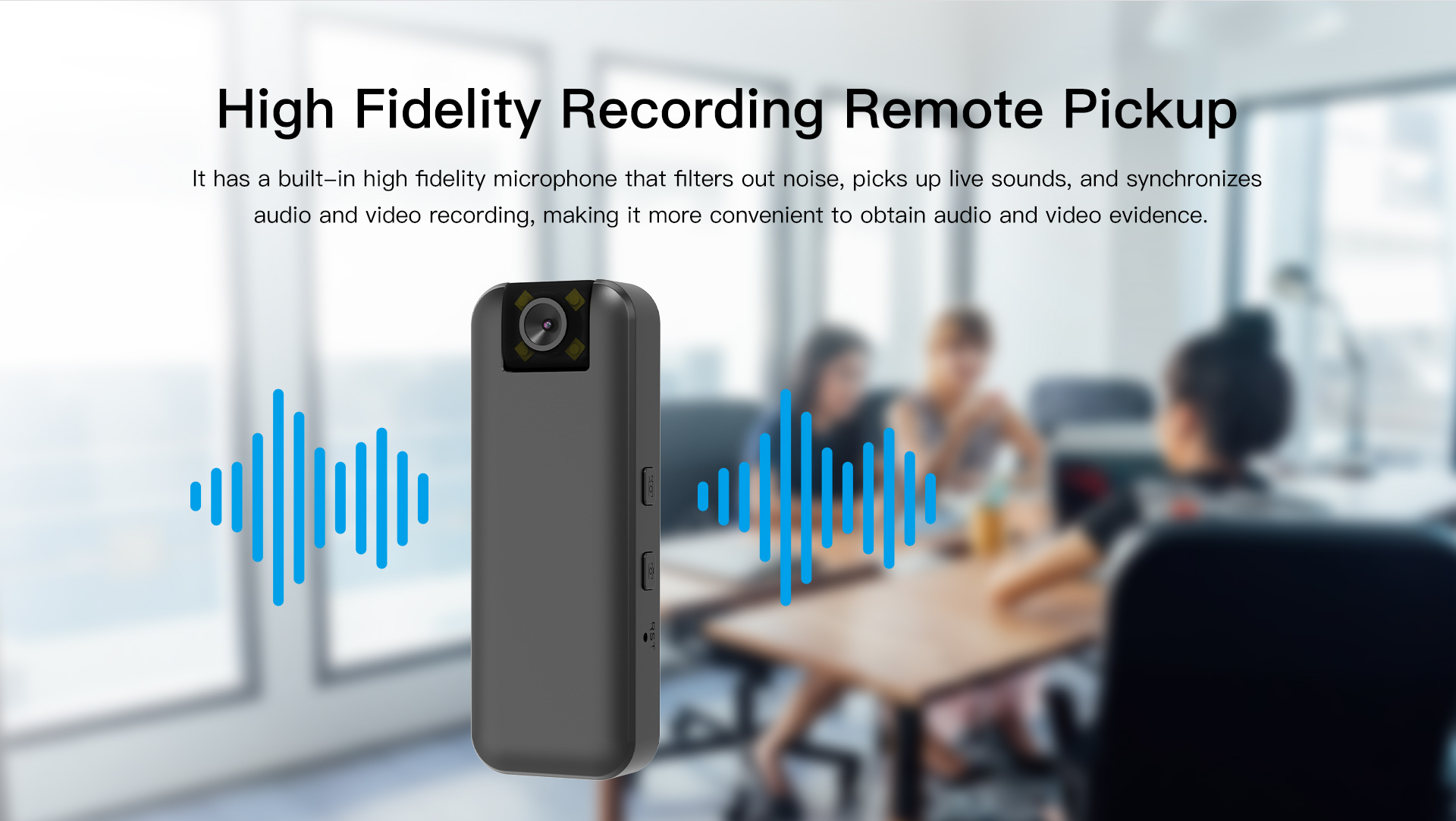

Audio input
|
Built-in-38dB microphone
|
|||
|
Sampling frequency/bit width
|
8KHz/16bit
|
|||
|
Compression standard/Bit Rate
|
G711A
|
|||
|
Human detection, human frame
|
Human detection, filtering invalid video contents
|
|||
|
Motion detection
|
Motion detection,remote alarm events
|
|||
|
Area detection
|
Free smearing, only monitoring the areas concerned by users
|
|||
|
4G China
|
FDD:B1/B3/B5/B7/B8/B28,WCDMA:B1/B5/B8
|
|||
|
4G Europe
|
FDD:B1/B3/B7/B8/B20/B28,WCDMA:B1/B8
|
|||
|
Reset
|
Long press to restore factory setting
|
|||
|
Video button
|
Short press to pause the recording and save
|
|||
|
Photo button
|
Short press 1 time to take photos; Short press 2 time to turn on/off night vision
|
|||
|
Power button
|
Push up to turn on, push down to turn off
|
|||
|
External TF card
|
TF card (up to 256GB)
|
|||
|
Cloud storage
|
Free loop cloud storage
|
|||
|
Alarm detection
|
Motion detection, human detection
|
|||
|
Power
|
DC5V±5%@Type-C interface
|
|||
|
Work Environment
|
Temperature:-10～50℃; Humidity: ＜90%
|
|||
|
Packing list
|
Camera* 1, manual * 1, Type-C cable
|
|||
