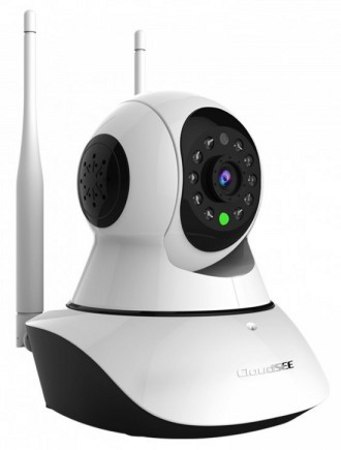

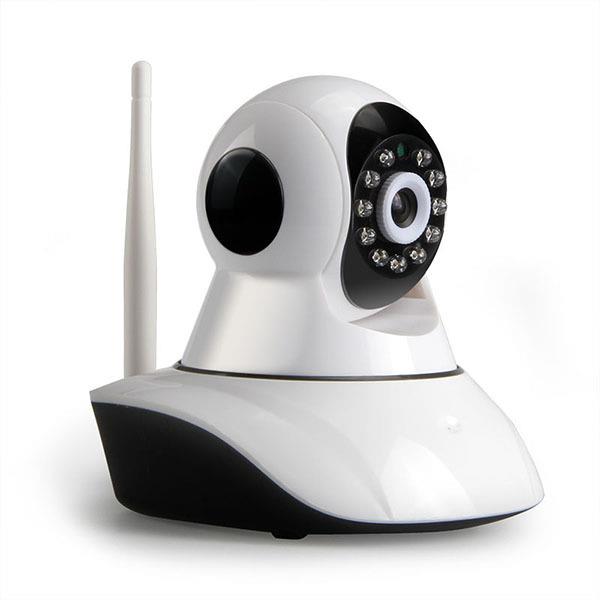

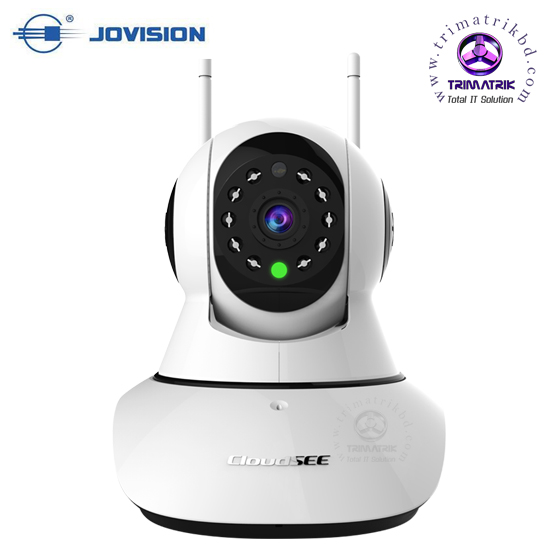

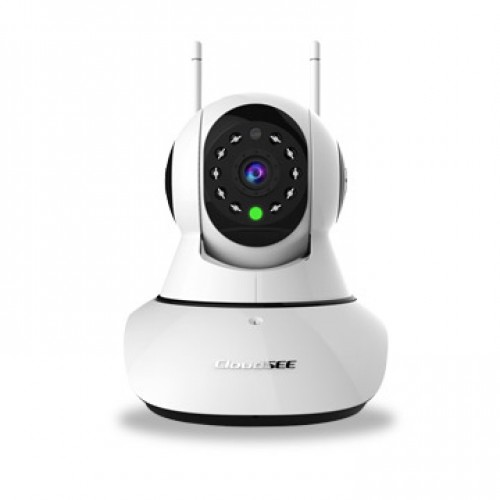

JOVISION WIRELESS IP CAMERA

Model/Specification JVS-H510

Camera Image Sensor 1/4″CMOS
Resolution 1280×720
Pixel 1.0MP
Compression H.264/JPEG
Frame Rate 25fps
Bit Rate 64Kbps～8Mbps
Min.Illumination 0Lux(IR ON)
Lens Lens Mount M12
Lens 3.6mm
View Angle 71°
Focus Fixed
Function Privacy Mask 4 Rectangle areas
Exposure Control Auto
Gain Control Auto
White Balance Auto
Day & Night IR cut filter with auto switch，
Support Color to Black
Video Adjust Supports contrast, brightness,
saturation, sharpness adjustment
Remote Operation System、Stream、User、Network Management
Motion Detection Support
Alarm E-mail、Client
Voice Intercom Support
Local Storage 64G
PTZ Control Rotation Angel Horizon:355° Vertical:120°
Preset 127
Automatic Cruise 1 line
Horizontal Scan 1 Line
Interface Audio Input 1个 Built-in MIC
Audio Output 1 Built-in Speaker
Net 1 RJ45 10M/100M adaptive interface
Alarm In 1 CH
Alarm Output 1 CH
TF slot 1 standard TF card slot
Reset Restore to the factory settings
Network Ethernet 10/100M Ethernet
Wireless WIFI
Dual Stream Support
Protocol HTTP,TCP/IP,ICMP,UDP,SMTP,FTP,DHCP,DNS,PPPOE
Transmission Internal Cloudsee Protocol
Browser IE8+,Chrome18+,Firefox5.0+,Safari5.02+
Connection 6 CH
User Permission Up to 13 users，Three level authority：
Administrator、User、Visitor
General Infrared Lamp 10 LED Lamps
IR distance（m） 10m
Best distance（m） 8m
Temperature -20℃～55℃
Humidity 10%～90%
Power Supply DC 5V
Power ≦3.2W
Material White ABS+PC
Size(W×H×D)(mm) 115×147×138
Weight(g) 300
Installation Wall/Ceil/Desk Mounting
1.Configure device through wired/wireless network.

2.Support horizontal and vertical PTZ; control viewing angle freely.
3.Support soundwave and wire configuration.
4.Built-in MIC and speaker,support two-way talk.
5.Support multiple RS433 alarming methods,magnetic door,bracelet etc.
6.Support High/Standard/Flow definition switch.
7.Support 64G local storage.
8.Record file format:MP4.
9.Support Android/IOS/Windows PC client remote view.
10.Capable of seeing face clearly within 8m in daytime; 10m IR distance at night
