Model CS-CV246-B0-1C1WFR Camera Image sensor 1/4″ Progressive Scan CMOS Shutter Speed Self-adaptive shutter Lens 4mm@ F2.2, view angle: 90°(Diagonal) PT Angle Pan: 340°, Tilt: 120° Lens Mount M12 Day & Night IR cut filter with auto switch DNR 3D DNR WDR Digital WDR Compression Video Compression H.264 H.264 Type Main Profile Video Bit Rate HD; balance; fluency. Adaptive bit rate. Audio Compression AAC Audio Bit Rate Self-Adaptive Image Max. Resolution 1280 × 720 Frame Rate Self-Adaptive Max:25fps Image setting Brightness, contrast, saturation, etc.（configure via EZVIZ studio） BLC Support Network Wired network A RJ45 Ethernet Port, adaptive rate of 10/100M Storage Support Micro SD card (Max. 128G) Smart Alarm Motion detection One-key configuration SmartConfig（Wi-Fi One Push Configuration） Protocol Ezviz cloud proprietary protocol Interface Protocol Ezviz cloud proprietary protocol General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n Draft Frequency Range 2.4 GHz ~ 2.4835 GHz Channel Bandwidth Support 20MHz Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Transmission Rate 11b: 11Mbps,11g :54Mbps,11n :135Mbps General Operating Conditions 14°F to 113 °F (-10ºC ~ 45ºC ), Humidity 95% or less ( non-condensing) Power Supply DC 5V±10% Power Consumption 7W MAX IR Range MAX. 10 meters Dimensions (mm) 87.7*87.7*112.7mm Weight 256g.

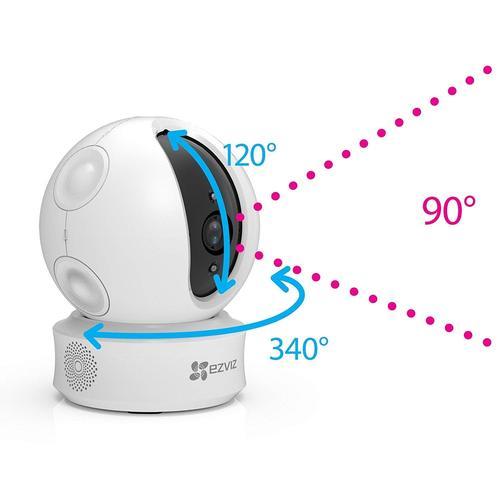

• Up to 1 megapixel resolution, 1280×720@25fps. ◇ Support PT function, pan angle up to 340°, tilt angle up to 120° (up 105°, down 15°).
• Support smart motion tracking shoot. ◇ High-efficiency infrared fill light, long service life and up to 10 meters irradiation distance.
• Built-in microphone and speaker, support two-way audio. ◇ Support Micro SD card up to 128GB.
• Support Wi-Fi, smart configuration via QR code.
• Support video alarm service for mobile phone and Web.
