GPS Kids Tracker Wifi A9

The Smallest Mini Micro GPS Kids Tracker Wifi A9 GSM Locator Double Talk SOS Alarm Children Tracking Remote Voice Monitoring

Application Method:

1. Before use, please test equipment model is correct, accessories are complete.
2. In shutdown state insert support 2G GSM network SIM card(GSM 850,900,1800,1900MHz) and open the caller id function and monthly flow(not less than 30m/month traffic package).
3. Power On: Press on the power button for 3 seconds or more then powered on.
4. Shutdown: When mobile phone APP display equipment online, through the app setting remote shutdown function to turn it off. When mobile phone APP display equipment offline, please take out the SIM card and long press power button for power off.
5. Charge: Insert the USB charging line, connected to the output of 5V-1A standard mobile phone adapter, from no power to full about 2-3 hours.
6. Installation Method:
1)Use tweezers open the card slot;
2)Chip up insert the mocile phone card;
3)Use tweezers cover into the sim card.
7. Record the ID number of the device: Around the outside of the box, you will find ID number(ten number). Please remember or record it down. Remember they will be used in the process of logining in. Below is the picture displayed:

A9 Main Function: GPS Tracker

1. GPS+LBS+WIFI positioning
2. Geofence: Users in the cell phone APP choose Geo-fence function, on the map can set Geo-fence round, if the device away from fences, mobile phone APP client-side will display the alrm information. Alarm information time is related to the positioning interval time setting.
3. SOS call, With SOS button and two way voice function
4. Historical route, User can check the records on smartphone
5.Geo-fence:Send alarm automatically when out of the setting range
6.Historical route:Save the historical route for 3 months
7.Two way talk:Interferencefree mode, family number forced answer automatically, listening
8.SOS call, automatic dialing
9.Waterproof Level:IP65 Mini GPS Locator
10.Remote monitoring
11.Ultra-low power consumption of power management,intelligentdormancy
12.Software upgrade, remote debugging maintenance, remote settingparameters

Specification: gsm tracker

CPU: MTK MT6261
Size: 38.5X38.5X17mm
Host Weight: 22g
GPS Chip: MTK3337
GPRS: Class12
GPS Signal: L1,1575.42MHz C/A
GPS Channel Number: 22 channels
GPS Chip Receivesensitivity: -165dBm
GPS Location Accuracy: 5~15M
LBS Location Accuracy: 100-1000M
Minimum Standby Current: less than 0.5 mA
Average Standby Current: less than 2.5 mA
Average Working Current: around 55mA
Working Temperature: -20~70 centigrade degree
Working Humidity: 5% to 95% non-congealable
Test and Certification: can approval by 3C,CE&ROSH
GPS Antenna: Built-in high sensitivity FPC antenna
GSM Antenna: Built-in four frequency method of antenna
G-sensor: Support personal gps tracker
MIC: Support wearable devices

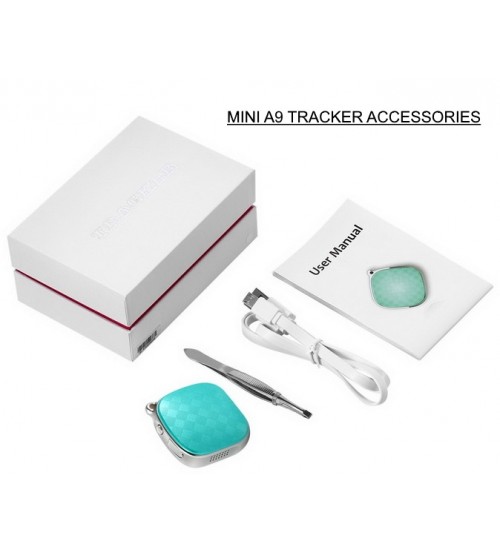

Package include:

1 * Main Unit
1 * USB Cable
1 * User Manual
1 * Tweezers
1 * Original Box
(No SIM Card and SD Card Inclu
