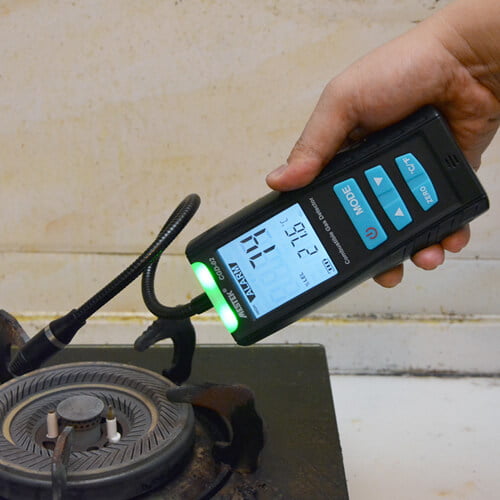

MESTEK Combustible Gas Detector, CGD-02 Gas Analyzer Handheld Carbon Monoxide Meter Portable CO Gas Leak Detector.

This detector is used to detect the leakage of combustible gas like methane, ethane, propane, and other hydrocarbon gases which are the main components of natural gas and liquefied gas. It can continuously monitor the concentration of combustible gas surrounding the environment. The audible and visual alarm will start once the gas concentration reaches the alarm level.

This detector can be widely used in detecting urban gas in homes, RV gas system, gas stations, gas transmission and distribution, gas pipeline safety inspection, and maintenance.

Features

• Light and novel appearance, easy to carry, easy to operate.
• High sensitivity, can respond rapidly when combustible gases are detected.
• Sound and light alarm.

Technical Parameters

• Sensor: Catalytic Combustion Type
• Detection Gas: EX
• Temperature Measurement: Ambient Temperature
• Display Unit: Combustible Gas: %LEL Temperature °C/°F
• Range: 0~100% LEL, Temperature -15~50°C
• Resolution: Combustible Gas: 1% LEL, Temperature 0.1°C/0.1°F
• Accuracy: Combustible Gas: ±5 F.S, Temperature ±1.5°
• Response Time: T90<60s
• Alarm: Sound and Light Vibration Alarm
• Alarm Point: Low alarm point 10% LEL, high alarm point 20%LEL
• Battery Type: AA3 Batteries to Supply
• Operating Temperature: -10 ~ +50°C
• Operation Humidity: 15% – 95%RH (Non condensation)
